Product Overview
- High-Density 384-Chip : Features a completely dot-free (spotless) illumination effect.
- High thermal conductivity flexible double-layer electroplated PCB: Designed with a high-heat-dissipation FPC that allows for free bending and flexible installation in various shapes.
-
Advanced COB Technology: LED chips are mounted directly onto the FPC, achieving an ultra-wide 180-degree beam angle.
-
DC12V or DC24V Constant Voltage Design: Operates on safe low voltage with minimal voltage drop.
- Higher color rendering index(CRI 90+): It is perfect for displaying true color.
- SDCM<3 color consistency: Few color difference between batches.
- The biggest feature is that it helps to achieve a truly "hidden" lighting effect in razor-thin gaps with 3MM ultra-slim PCB . Easily fits into car door liners, cabinet seams, and micro-profiles where standard strips simply won't fit.

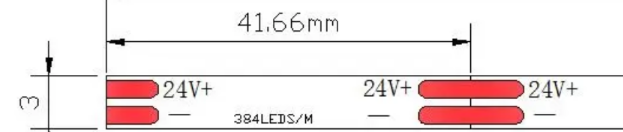

Product size( Take DC24V as example)
Product parameters
| |
| 3000K/4000K/6000K optional |
| 20.83mm(DC12V); 41.66mm( DC24V) |
| |
| |
| white( support to customize black or grey) |
| Double-layer electroplated FPC |
| |
| |
| 15cm 20AWG Red/Black wires at both ends |
| |
| |
| |
| |
| static bag or customized package |

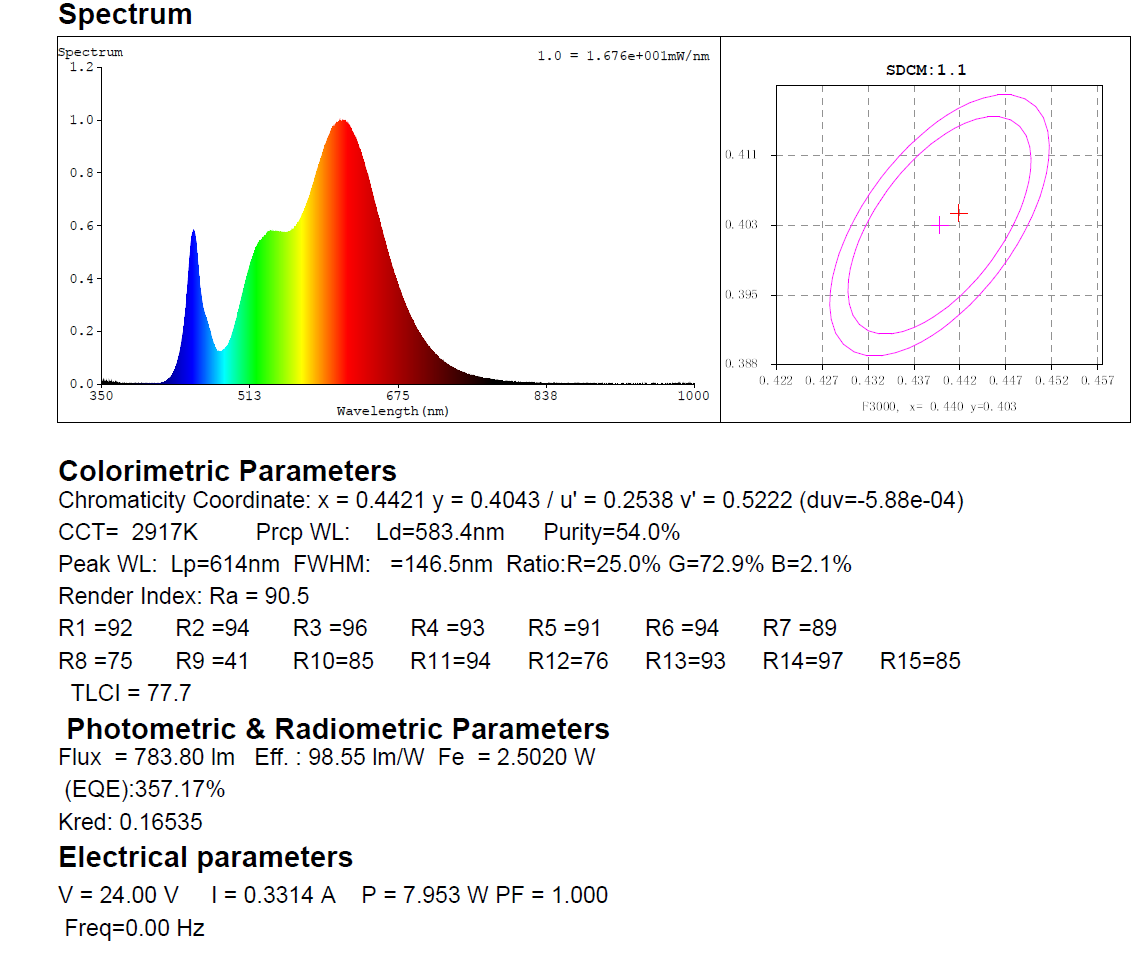

Product Spectrum Test Report
Product installation
①LED strip is low voltage product. Please don’t connect the LED strip directly to AC110/220V otherwise it will be burn out. You may need a AC/DC power adaptor. Below is a diagram for reference.
②Please clean up the installation surface and stick the led strips on a clean and dry surface.
③Recommended minimum bending diameter > 1cm, as shown below:
