Products576 series DC5V RGB COB LED strips for yachts
Deccoho 576 series DC5V RGB COB LED strips
COB LED stripsPremium

576 series DC5V RGB COB LED strips for yachts

Introduction of DC5V 576 series COB LED strips. DC12V and DC24V are optional.

Contact Us
Product Overview
  1. High-Density 576-Chip : Features a completely dot-free (spotless) illumination effect.
  1. High thermal conductivity flexible double-layer electroplated PCB: Designed with a high-heat-dissipation FPC that allows for free bending and flexible installation in various shapes.
  1. Advanced COB Technology: LED chips are mounted directly onto the FPC, achieving an ultra-wide 180-degree beam angle.
  1. DC5V or DC12V or DC24V Constant Voltage Design: Operates on safe low voltage with minimal voltage drop.
  1. High quality LED chip to make sure the correct wavelength of red and green and blue colors. Wavelength determines the purity and consistency of color. For detailed info, please visit our website link: https://deccoho-lighting.com/posts/what-is-the-relationship-of-wavelength-and-rgb-strip-quality.
  1. SDCM<3 color consistency: Few color difference between batches.
  1. CE&Rohs certificated.

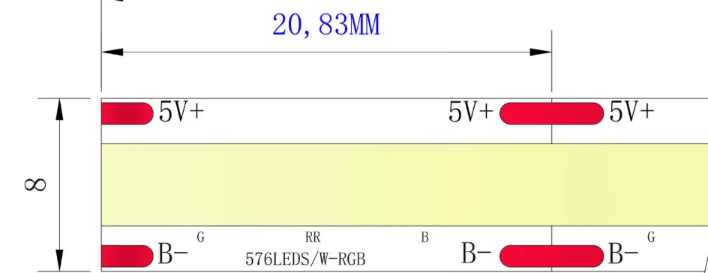

Product size( Take DC5V as example)


Product parameters
Input voltage
DC5VDC24V/DC12V optional
Color temp. CCT
RGB
Cut length
20.83（DC5V）；31.25mm(DC12V); 62.5mm( DC24V)
Wavelength
630nm(red); 526nm(green); 457nm(blue)
LED quantity
576LEDs/M
PCB color
white( support to customize black or grey)
PCB material
Double-layer electroplated FPC
Beam angle
180°
Power
10W/M
wire lead
15cm RGB wires at both ends
Luminous Efficacy
100lm/W±10%
Length per roll
5m or customized length
IP class
IP20/IP67 otpional
PCB width
8MM
Package
static bag or customized package

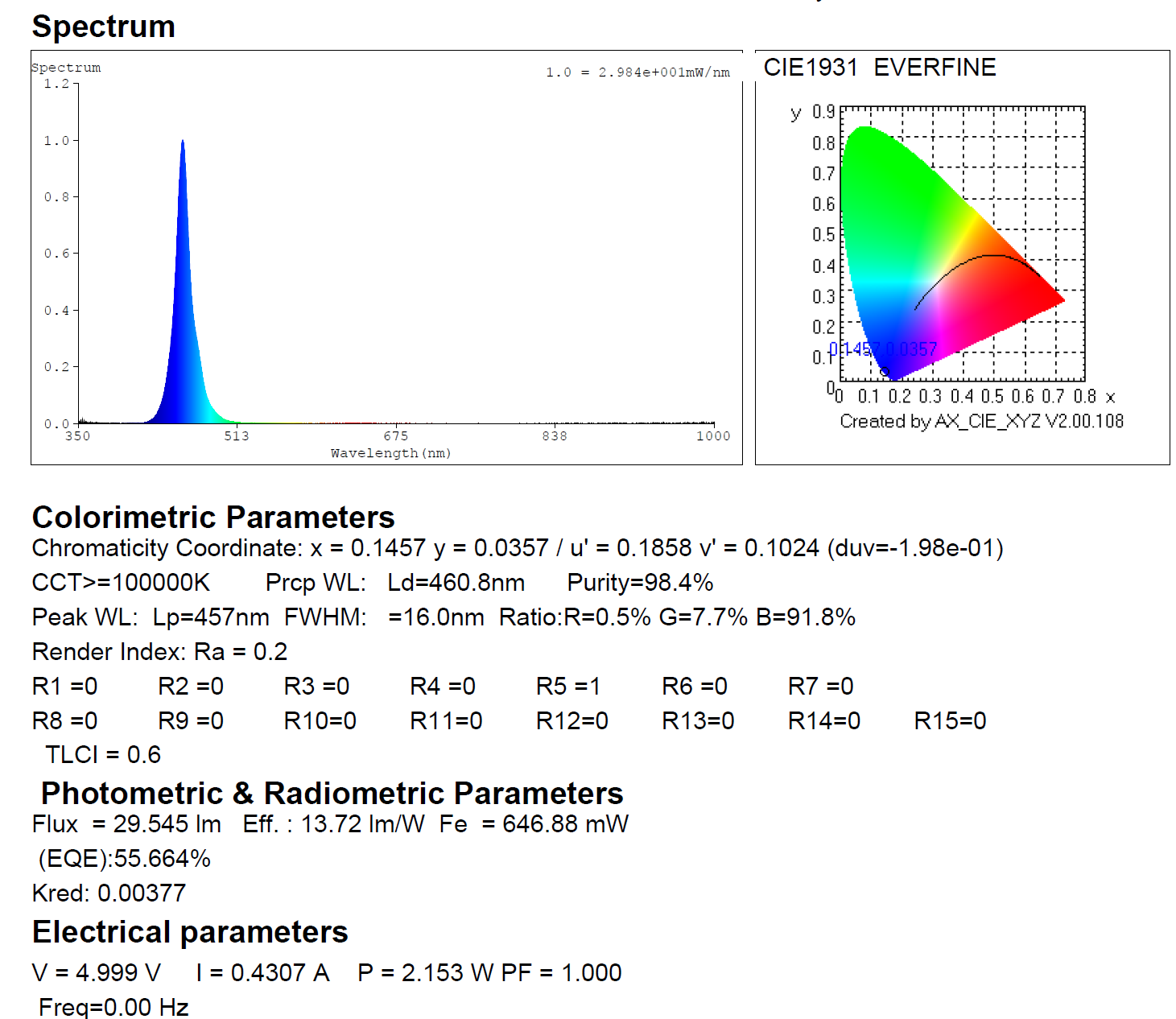

Product Spectrum Test Report




Product installation
①LED strip is low voltage product. Please don’t connect the LED strip directly to AC110/220V otherwise it will be burn out. You may need a AC/DC power adaptor. Below is a diagram for reference.

②Please clean up the installation surface and stick the led strips on a clean and dry surface.


③Recommended minimum bending diameter > 1cm, as shown below:

Thanks for your reading, for full catalog and detailed product info for other series, please contact our team（https://deccoho-lighting.com/contact）. Welcome your order.
