840 series spotless DC24V RGBCW COB LED strips for E-Sports furniture

Product Overview

High-Density 840-Chip : Features a completely dot-free (spotless) illumination effect.

High thermal conductivity flexible double-layer electroplated PCB: Designed with a high-heat-dissipation FPC that allows for free bending and flexible installation in various shapes.

Advanced COB Technology: LED chips are mounted directly onto the FPC, achieving an ultra-wide 180-degree beam angle.

DC12V or DC24V Constant Voltage Design: Operates on safe low voltage with minimal voltage drop.

High quality LED chip to make sure the correct wavelength of red and green and blue colors. Wavelength determines the purity and consistency of color. For detailed info, please visit our website link: https://deccoho-lighting.com/posts/what-is-the-relationship-of-wavelength-and-rgb-strip-quality.

7. RGB Capabilities: Offers a spectrum of millions of colors, ideal for ambient lighting in entertainment settings； CW (Dual White) Capabilities: Incorporates separate cool and warm white LED chips. This provides a professional solution to the "impure white" limitations found in traditional RGB strips, ensuring high-fidelity white light output.

CE&Rohs certificated.

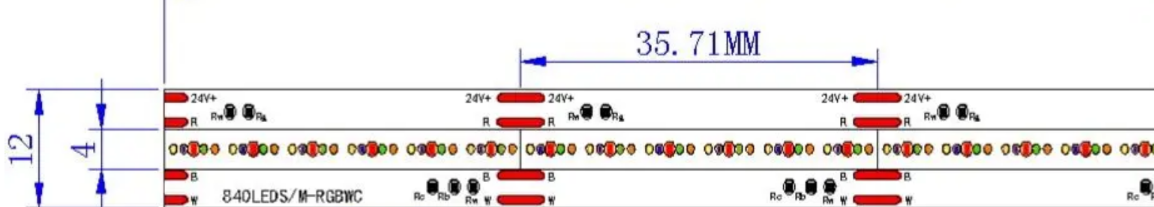

Product size( Take DC24V as example)

Product parameters

Input voltage	DC24V/DC12V optional
Color temp. CCT	RGBCW
Cut length	35.71mm( DC24V)
Wavelength	630nm(red); 526nm(green); 457nm(blue)
LED quantity	840LEDs/M
PCB color	white( support to customize black or grey)
PCB material	Double-layer electroplated FPC
Beam angle	180°
Power	21W/M（ All lights on)
wire lead	15cm RGBCW wires at both ends
Luminous Efficacy	60lm/W±10%
Length per roll	5m or customized length
IP class	IP20/IP67 otpional
PCB width	12MM
Package	static bag or customized package

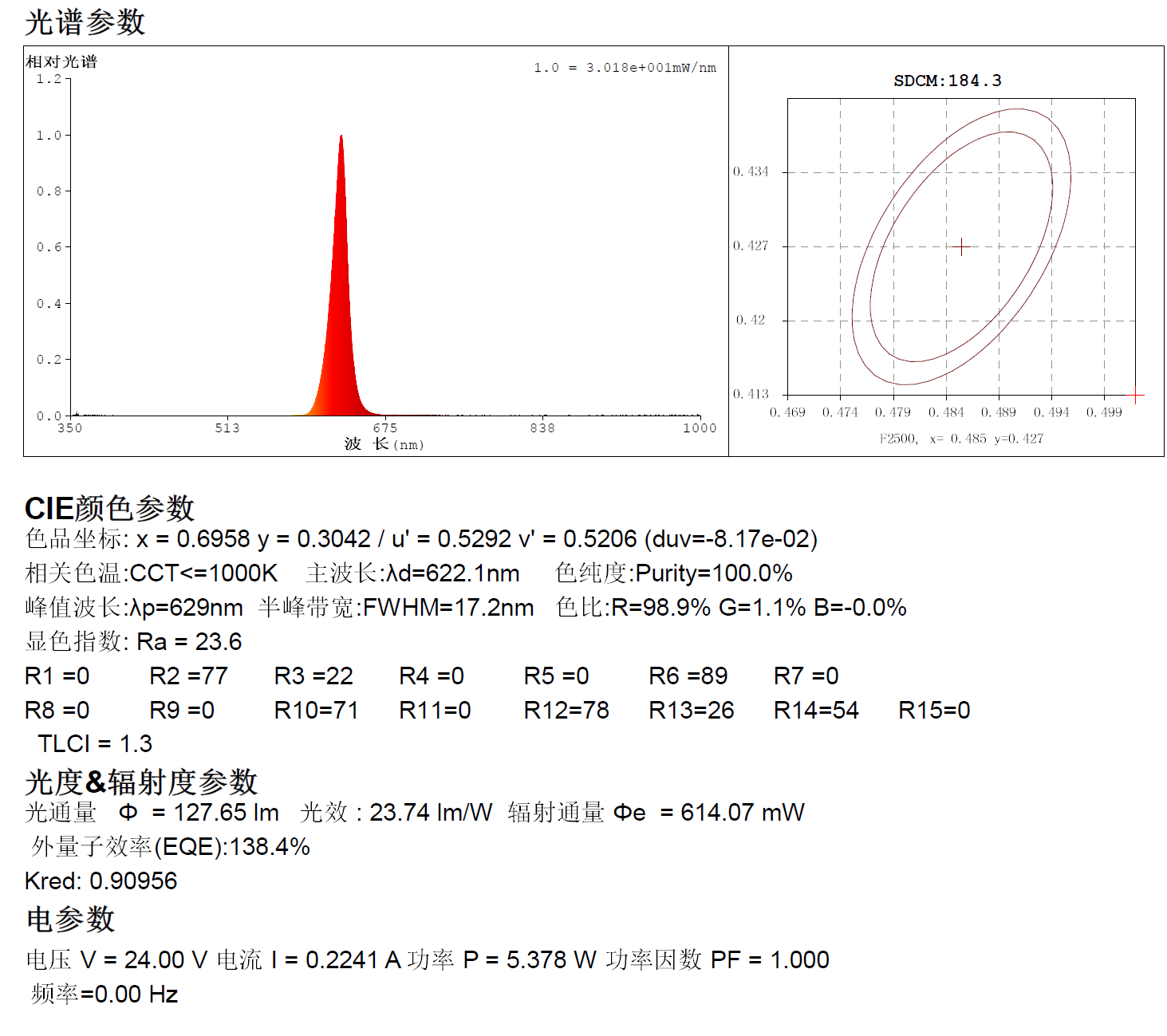

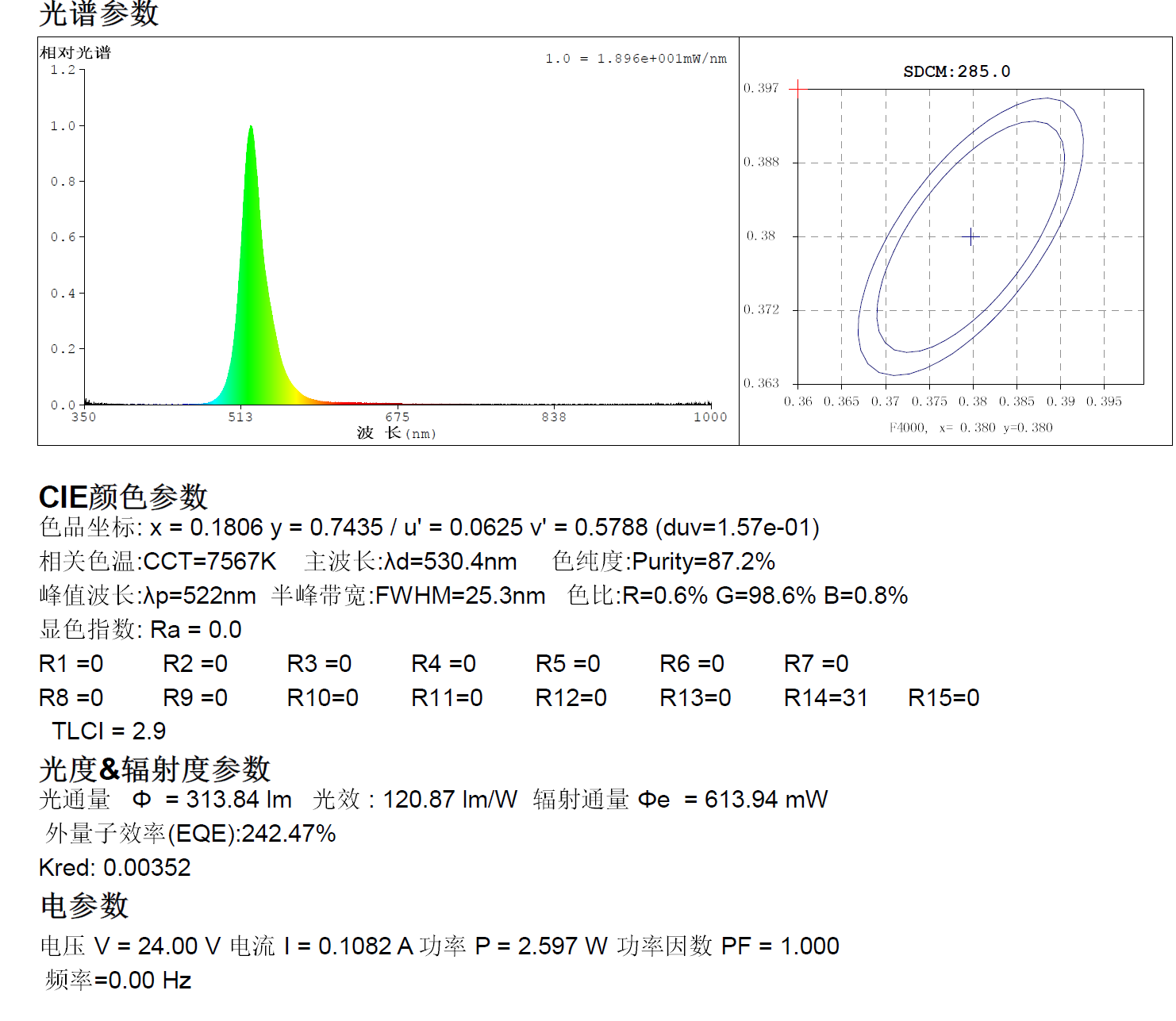

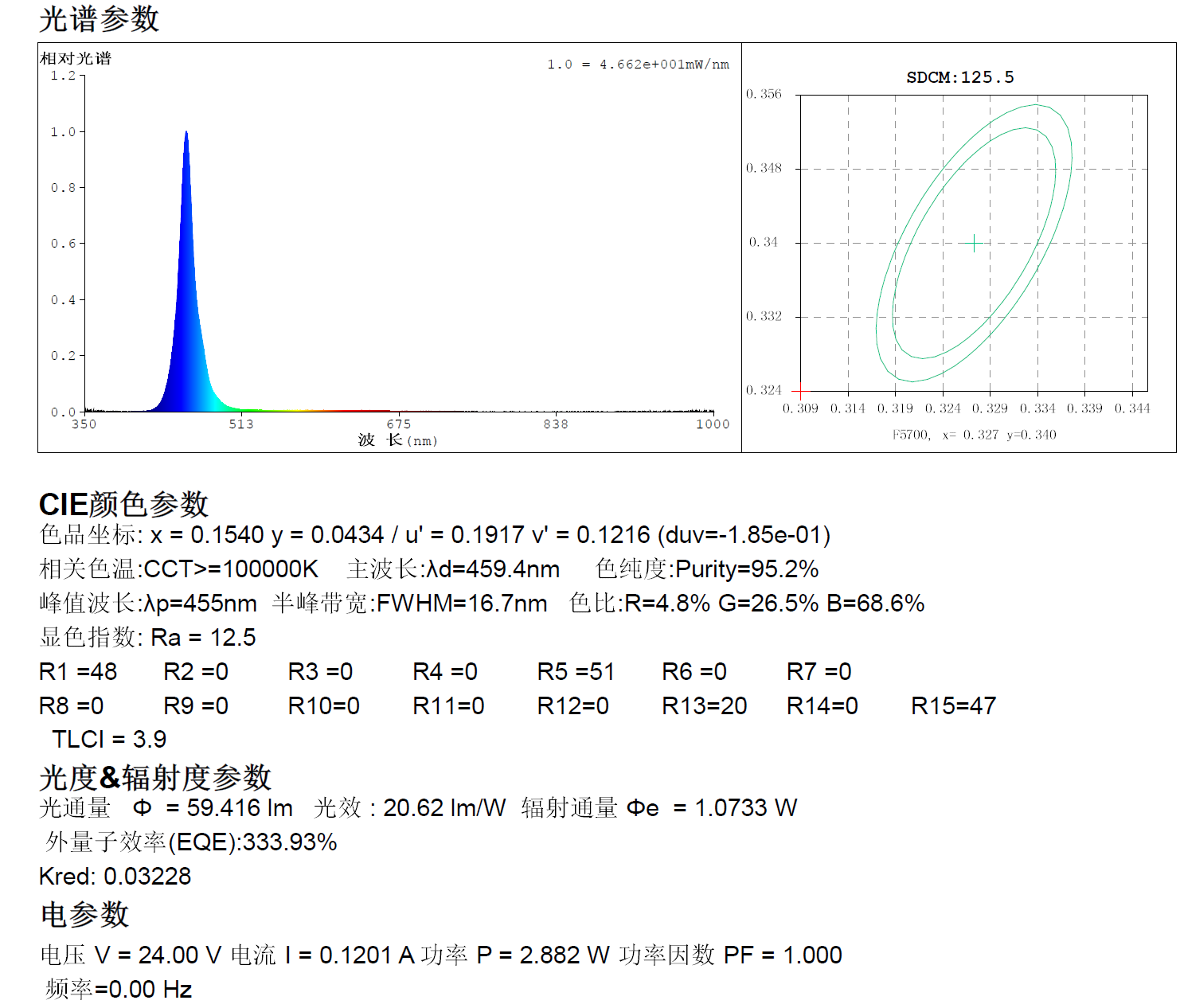

Product Spectrum Test Report

Product installation

①LED strip is low voltage product. Please don’t connect the LED strip directly to AC110/220V otherwise it will be burn out. You may need a AC/DC power adaptor. Below is a diagram for reference.

②Please clean up the installation surface and stick the led strips on a clean and dry surface.

③Recommended minimum bending diameter > 1cm, as shown below:

Thanks for your reading, for full catalog and detailed product info for other series, please contact our team（https://deccoho-lighting.com/contact）. Welcome your order.
