600COB spot-free double row DC24V COB LED strips for awnings pergolas

Product Overview

High-Density 600-Chip : Features a completely dot-free (spotless) illumination effect.

High thermal conductivity flexible double-layer electroplated PCB: Designed with a high-heat-dissipation FPC that allows for free bending and flexible installation in various shapes.

Advanced COB Technology: LED chips are mounted directly onto the FPC, achieving an ultra-wide 180-degree beam angle.

DC24V Constant Voltage Design: Operates on safe low voltage with minimal voltage drop. Double row 12MM PCB design.

Higher color rendering index(CRI 90+): It is perfect for displaying true color.

SDCM<3 color consistency: Few color difference between batches.

CE&Rohs certificated.

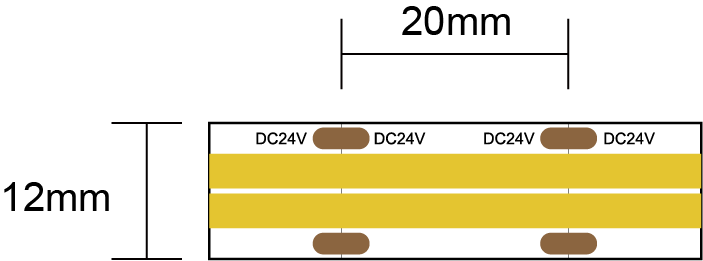

Product size( Take DC24V as example)

Product parameters

Input voltage	DC24V
Color temp. CCT	3000K/4000K/6000K optional
Cut length	20mm( DC24V)
CRI	90+
LED quantity	600LEDs/M
PCB color	white( support to customize black or grey)
PCB material	Double-layer electroplated FPC
Beam angle	180°
Power	24W/M
wire lead	15cm 20AWG Red/Black wires at both ends
Luminous Efficacy	100lm/W±10%
Length per roll	5m or customized length
IP class	IP20/IP67 otpional
PCB width	12MM
Package	static bag or customized package

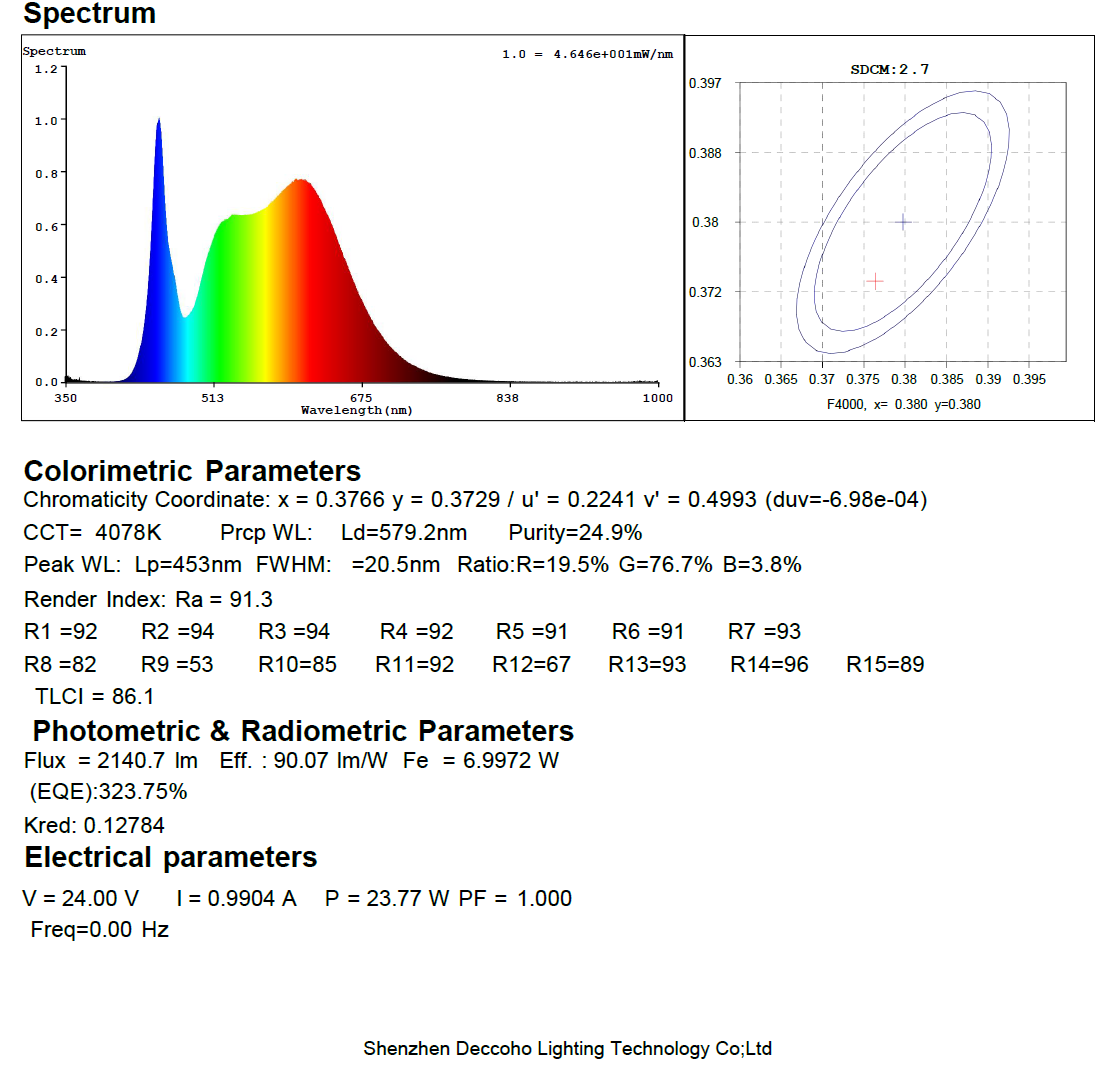

Product Spectrum Test Report

Product installation

①LED strip is low voltage product. Please don’t connect the LED strip directly to AC110/220V otherwise it will be burn out. You may need a AC/DC power adaptor. Below is a diagram for reference.

②Please clean up the installation surface and stick the led strips on a clean and dry surface.

③Recommended minimum bending diameter > 1cm, as shown below:

Thanks for your reading, for full catalog and detailed product info for other series, please contact our team（https://deccoho-lighting.com/contact）. Welcome your order.
