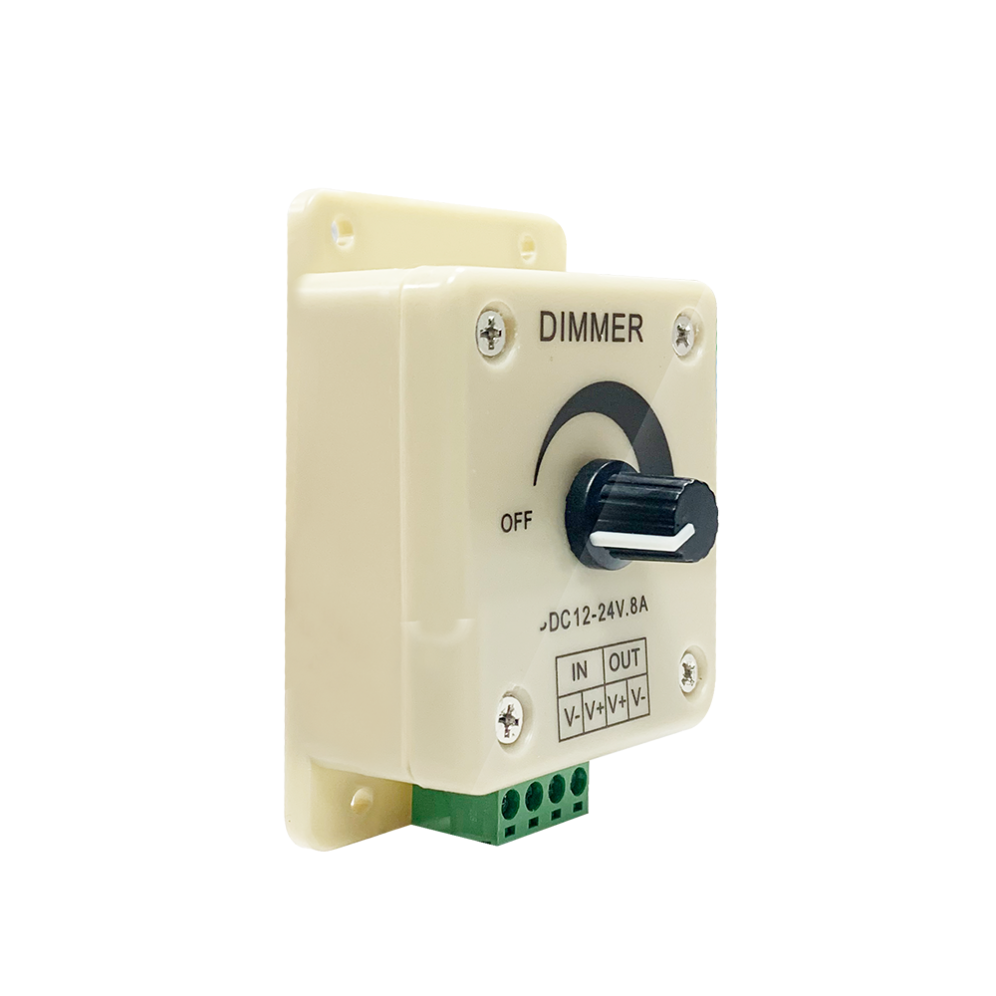

Deccoho DC12V 24V Knob manual LED dimmer for led strip and led module
LED dimmerPopular

DC12V 24V Knob manual LED dimmer manufacturer

This single color LED dimmer is perfect for controlling DC12V or DC24V LED source such as LED strips, LED module , LED panel and etc.

Contact Us
Product overview
  1. This is a 0-100% stepless knob manual LED dimmer.
  1. It is used to control all kinds of constant voltage DC12V or DC24V single color led products such as LED strip, LED module, wall washer LED, LED panel and so on.
  1. Users can achieve stepless dimming from 0-100%.
  1. This dimmer is with power off memory function and short circuit protection function.
  1. Agile wiring, easy connection and simple to use.
  1. CE &RoHS certificated.

Product parameters
Input voltage
DC12-24V
Output voltage
DC12-24V
Output channel
1 channel
Connection mode
common anode
Output current
8A
Controller housing
Plastic material
Dimming method
Manual
Color
Beige
Remote color
Without remote
Package
White box or customized box
Carton box info
100pcs/carton; 7kgs/carton

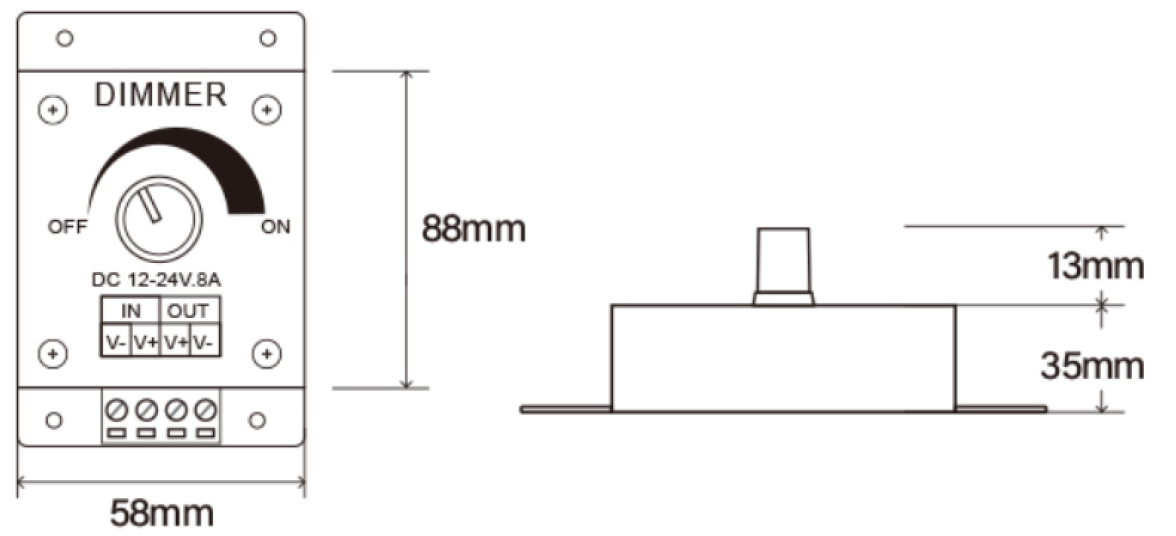

Product size

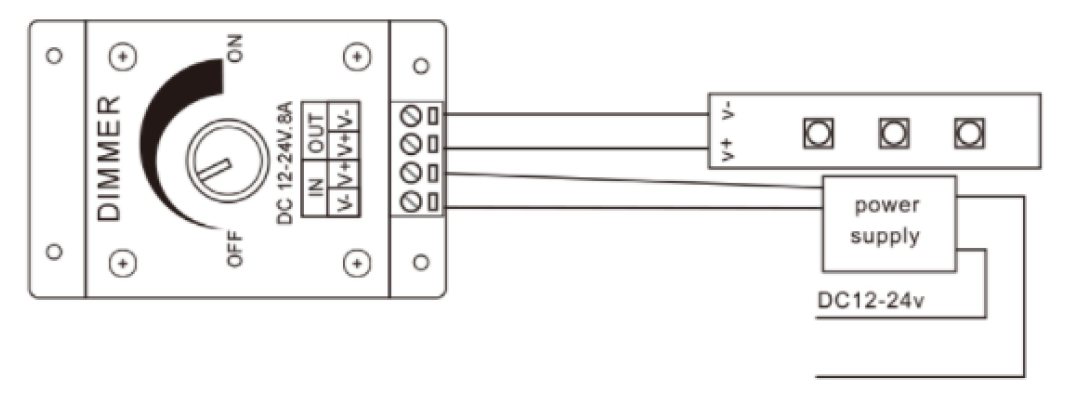

Product connection
  1. Please take below diagram to make sure your connections are correct before you turn on. Please avoid short circuit.


  1. Please don't be overloaded otherwise product will be burn out.

Thanks for your reading, for full catalog and detailed product info for other models, please contact our team(https://deccoho-lighting.com/contact). Welcome your order.
