Product Overview

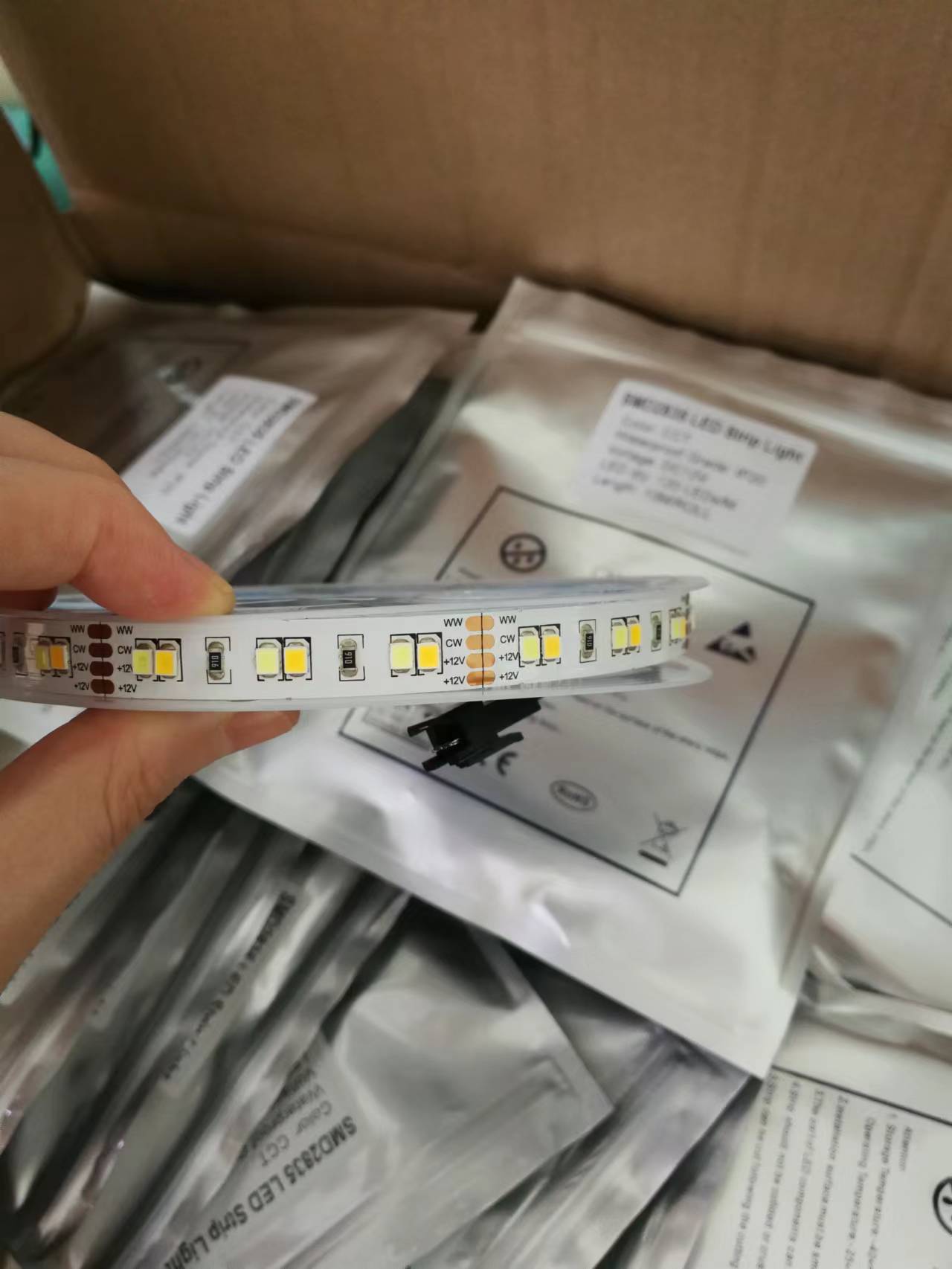

Adapted high quality 2in1 2835SMD LED. 120LED per meter layout. very high density LED.

2. It is dimmable and can switch color temp. from warm white to cool white.

3. Doule-layer PCB quality with better heat dissipation and longer lifespan.

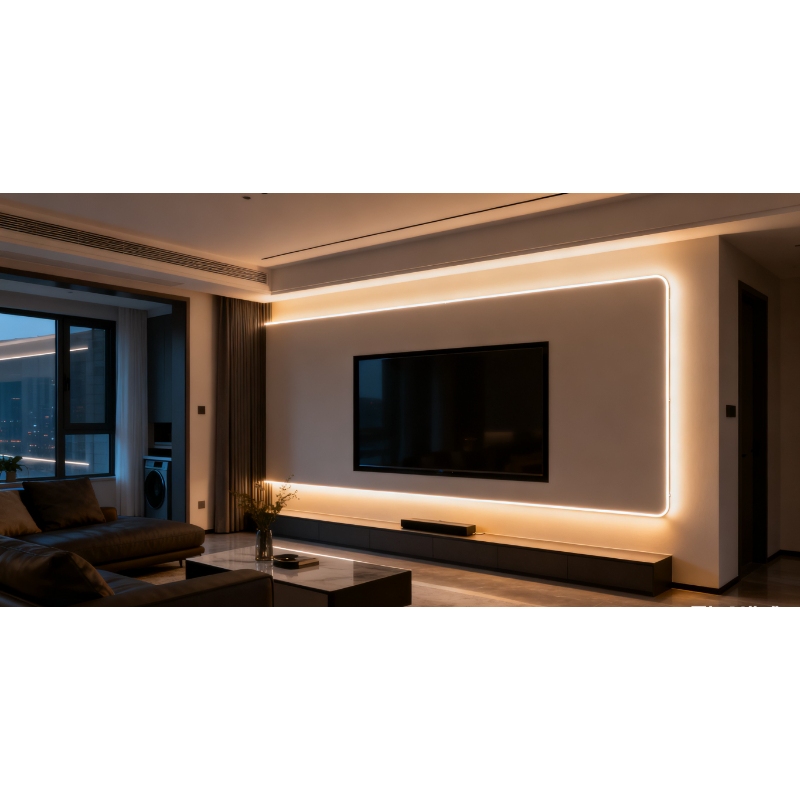

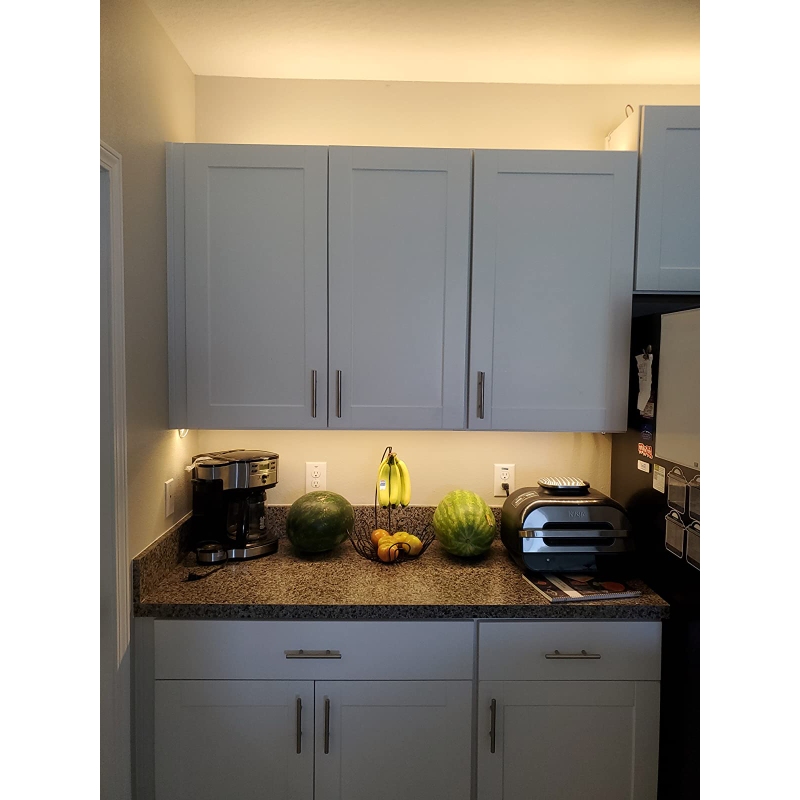

4. Adjustable for all kinds of LED decorations such as kitchen, under cabinet, bedroom, patio, TV Back lighting, automobile, mirror, balcony, party, wedding, Christmas decoration, hotels, clubs, show exhibitions, advertisement sign and etc.

5.Safety input 12VDC or 24VDC and low consumption. It is touchable and safe to children.

6. Strong glutinosity back tape.

CE&RoHS. cerficated.

Product parameters

Input voltage	DC24V/DC12V optional
Color temp. CCT	2700-6500K dual white
Cut length	Cuttable at every 3 LED
CRI	80+
LED quantity	120LEDs/M
PCB color	white( support to customize black or grey)
PCB material	Double-layer FPC
Beam angle	120°
Power	14W/M
wire lead	15cm 20AWG Red/Black wires at both ends
Luminous Efficacy	100lm/W±10%
Length per roll	5m or customized length
IP class	IP20/IP67 otpional
PCB width	10MM

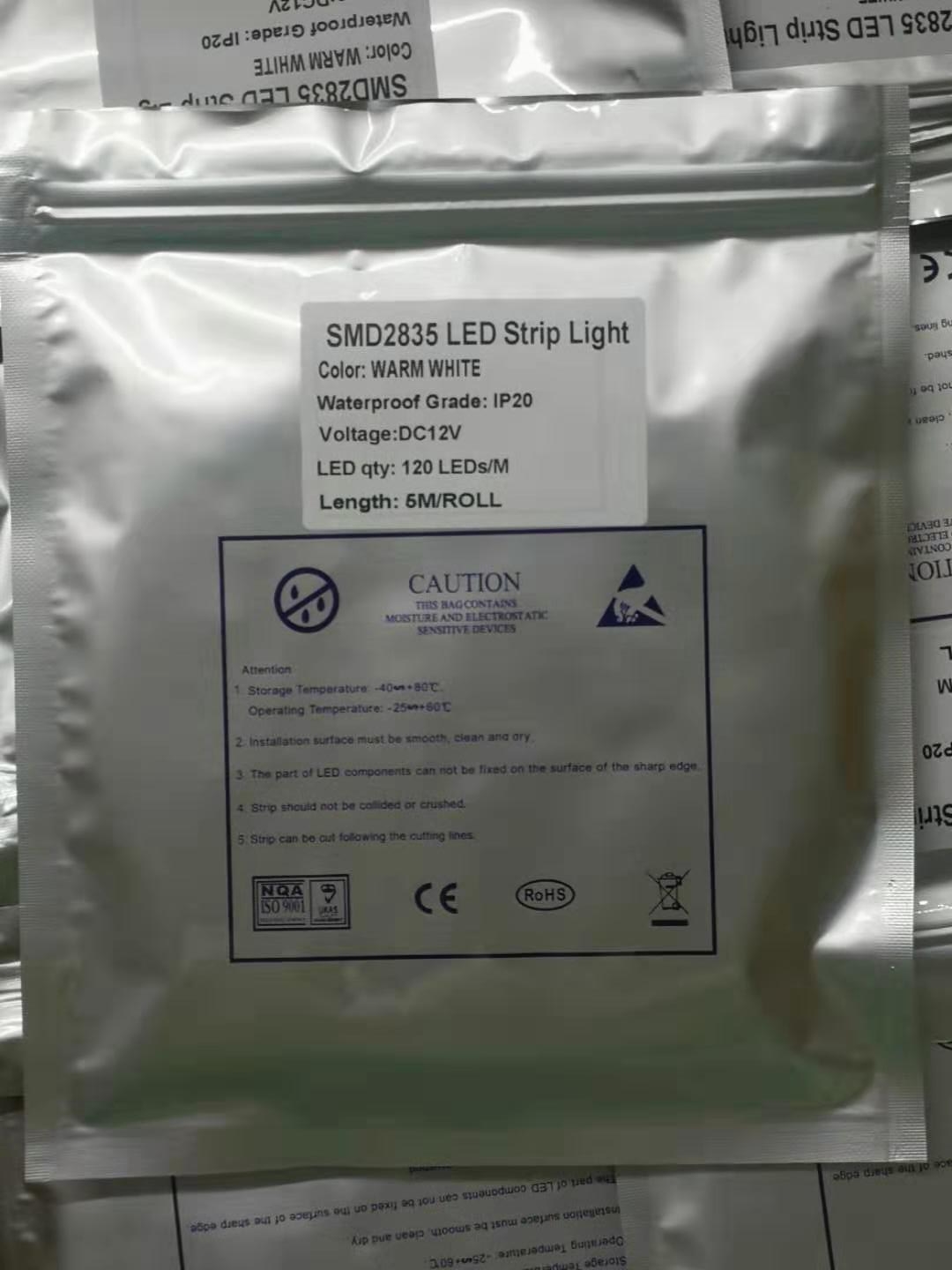

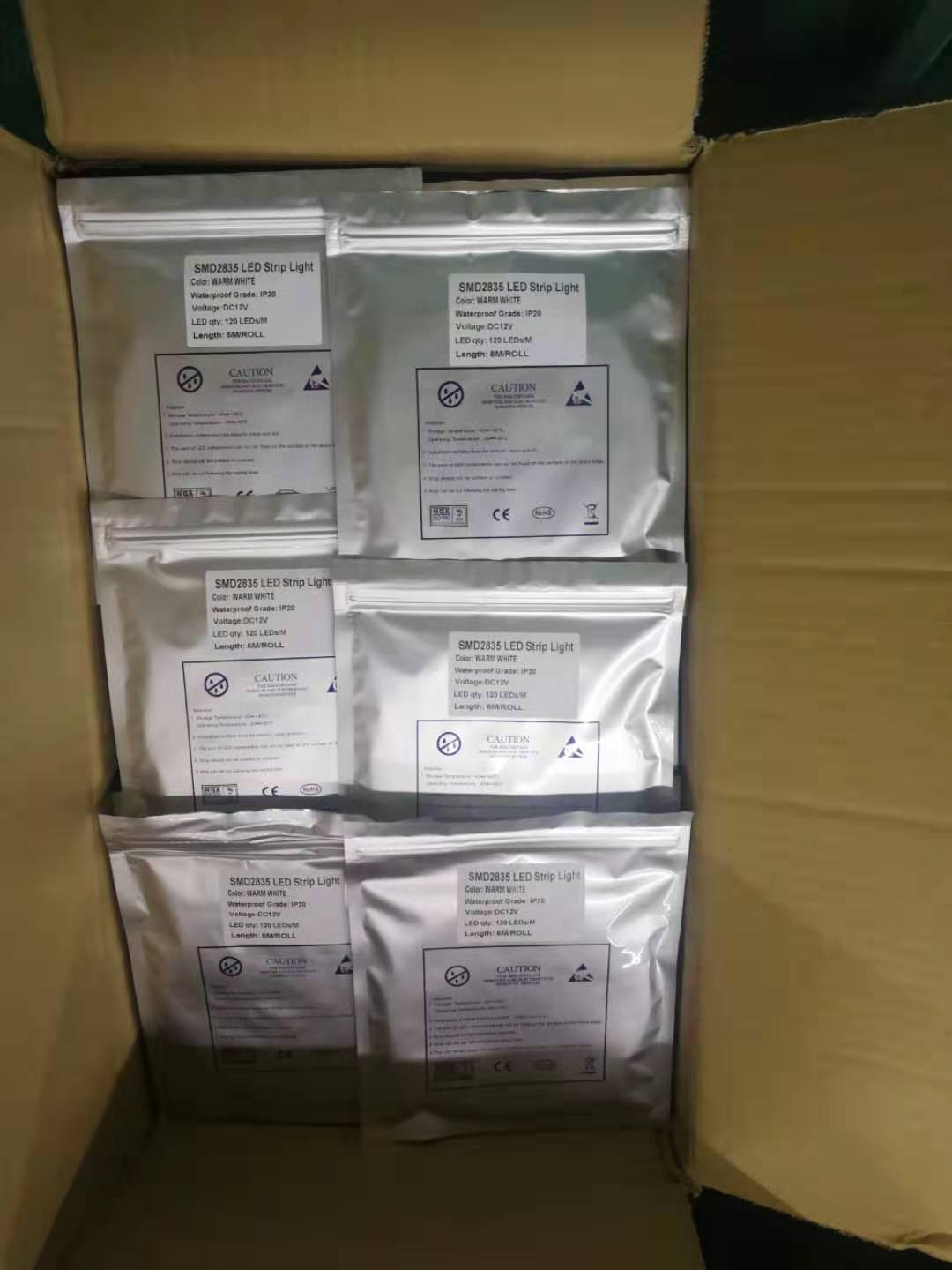

Package	static bag or customized package

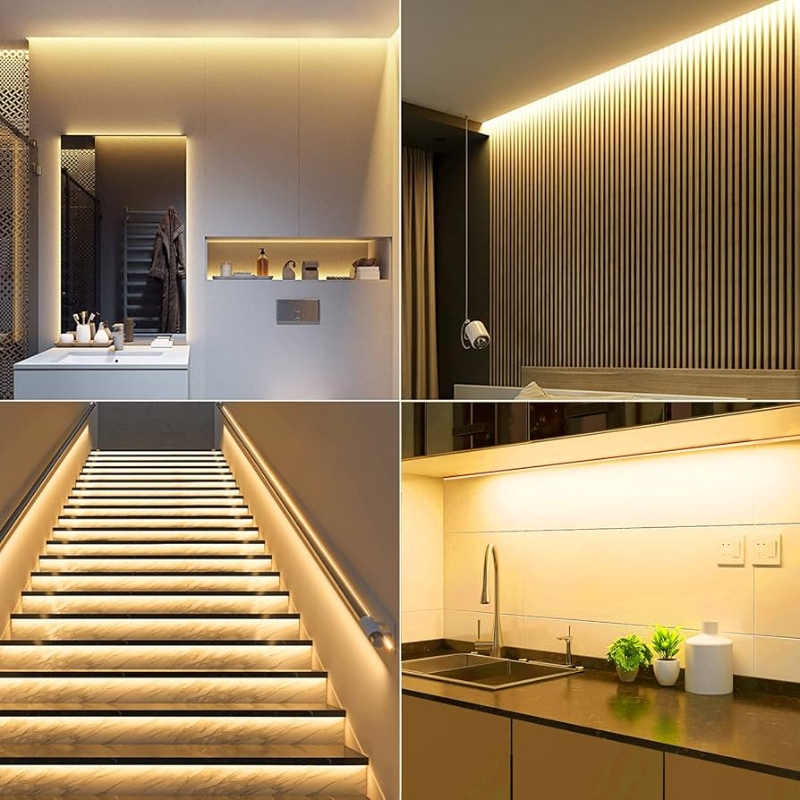

Product applications

Product installation

①LED strip is low voltage product. Please don’t connect the LED strip directly to AC110/220V otherwise it will be burn out. You may need a AC/DC power adaptor. Below is a diagram for reference.

②Please clean up the installation surface and stick the led strips on a clean and dry surface.

Thanks for your reading, for full catalog and detailed product info for other series, please contact our team（https://deccoho-lighting.com/contact）. Welcome your order.
